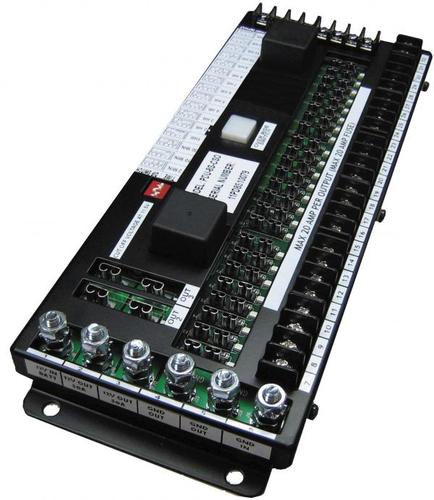

The Power Distribution Unit (PDU) is a compact and convenient point of load power distribution product for installed electrical devices. By using this device and carefully planning the distribution of mobile equipment power feeds, complex independent wire runs and unreliable fuse panel connections can be avoided. The PDU42-8S is directly connected to the vehicle battery and ground, thus providing a direct easily traceable route to the input power source avoiding interfering with the vehicles factory wiring harness. Each circuit can be individually fused further reducing risk of damage to devices from circuit overload. Each fused output has a red LED to indicate when a circuit fuse is GOOD. The PDU42-8S unit provides two 50A high current outputs and up to 24 additional outputs divided into “constant/battery”, “ignition controlled” and “timed” outputs to meet the typical in-vehicle equipment installation requirements. Features Organizes vehicle wiring runs All power conncections at one central location Provides direct power, ignition power and timed power Easy installation, easy connection of accessory equipment Visual condition of circuits Make a safer electrical connection to vehicles Built-in Watchdog (battery discharge protector) Fast and reliable vehicle installations Specification Power Inputs:           1-6 AWG +12V @ 60A max input current           1-6 AWG Ground           1-18 AWG Ignition Control Input Power Output (High Current connection)           2-8 AWG @ 50A Max +12V (fused at 75A)           2-8 AWG Ground Battery voltage Monitor           1-18 AWG sense wire @ +12V BATT terminal           1-18 AWG sense wire @ GND BATT terminal Terminal Block Power Outputs           8 Ignition Controlled Power - the total current not to exceed 60A           8 Continuous Power - the total current not to exceed 60A           8 Timed Power - the total current not to exceed 60A           7 Ground return path for the Output terminal blocks - the total return current not exceed 60A
